| Technical data | Specifics |
| Footprint | 20 × 18.5 m |
| Safety Envelope | 28 × 18.5 × 18 m |
| Equipment Height | 11.6 m |
| Max Operating Height | 14.9 m |
| Max Speed | 16.9 m/s |
| Gondola Rotation Speed | 7.5 rpm |
| Capacity | 25 persons |
| Slewing Diameter | 20.6 m |
| Swing Angle | 100° |
| Drive Power | 67.5 kW |
| Installed Power | 80 kW |
| Total Weight | 19 T |

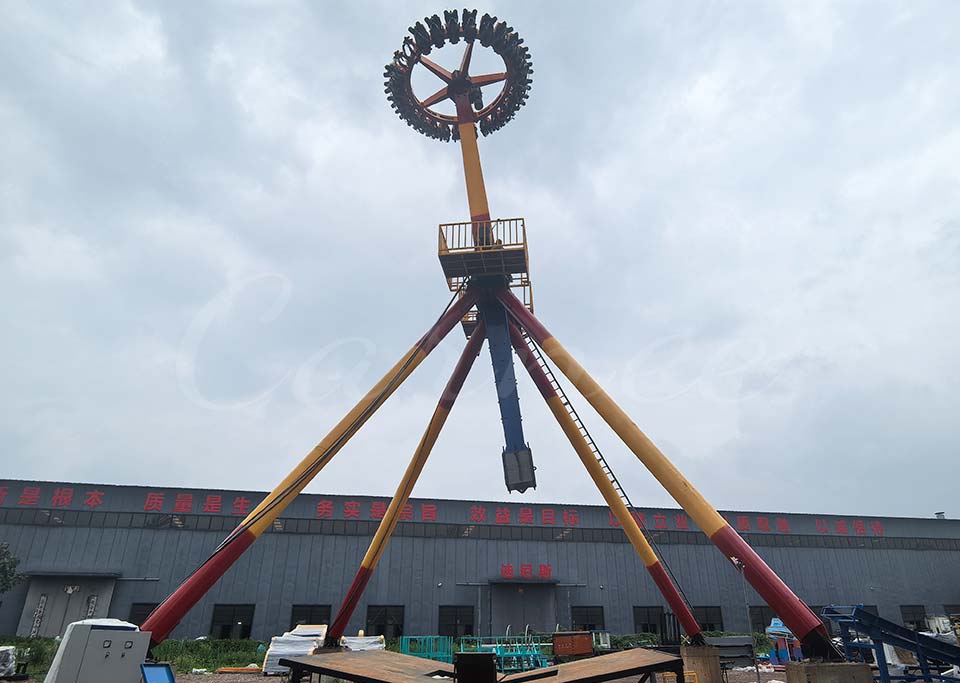

360° Big Pendulum Ride Advantages
- Drive System – Top drive with dual motors for smoother operation, reduced vibration, and enhanced safety.
- Control System – PLC + frequency conversion control for smooth acceleration and precise speed adjustment.
- Safety Design – Dual restraints, including high-strength seat belts and over-the-shoulder bars for maximum rider safety.
- Premium Materials – FRP fiberglass seats + national standard Q235 steel structure, equipped with Chint Electric components, Wannan motors, and Xuzhou-branded slewing bearings.
- Lighting System – RGB full-color LED lighting creates a stunning visual impact, especially at night.
- Fine Craftsmanship –
- FRP made from 196 epoxy resin + 04 platinum fabric, hand-polished for refined details.

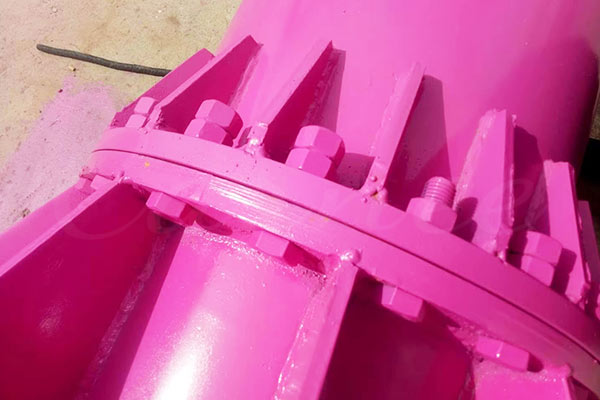

- Every unit undergoes strict structural calculations and testing; all bolts are grade 8.8 high-strength.
Ideal Applications
- Large theme parks
- Amusement parks
- Resort entertainment centers
- City carnivals and fairs
Make the 25-Seat 360 Degree Big Pendulum Ride the iconic thrill ride in your park — attracting crowds with its towering structure by day and dazzling light show by night, delivering an unforgettable mix of excitement and joy while driving continuous attendance and revenue growth.
