| Technical data | Specifics |
| Seating Capacity | 25 riders |
| Area Required | 20 × 18.5 m |
| Safety Envelope | 28 × 18.5 × 18 m |
| Equipment Height | 11.6 m |
| Max Running Height | 14.9 m |
| Max Speed | 16.9 m/s |
| Swing Angle | 100° |
| Slewing Diameter | 20.6 m |
| Turntable Speed | 7.5 rpm |
| Drive Power | 67.5 kW |
| Installed Power | 80 kW |
| Total Weight | 19 T |
| Material | FRP fiberglass + Q235 steel |
| Control System | PLC control with soft start/stop |
How do Pendulum Rides Work?
Also known as the Frisbee ride or Space Travel ride, the swinging pendulum ride performs a circular motion along a horizontal axis, powered by either hydraulic or mechanical drive systems.
Once the ride starts, the round gondola swings back and forth while simultaneously rotating 360°, reaching a maximum running height of 14.9 meters.
Riders experience moments of weightlessness, rapid drops, and intense centrifugal force.

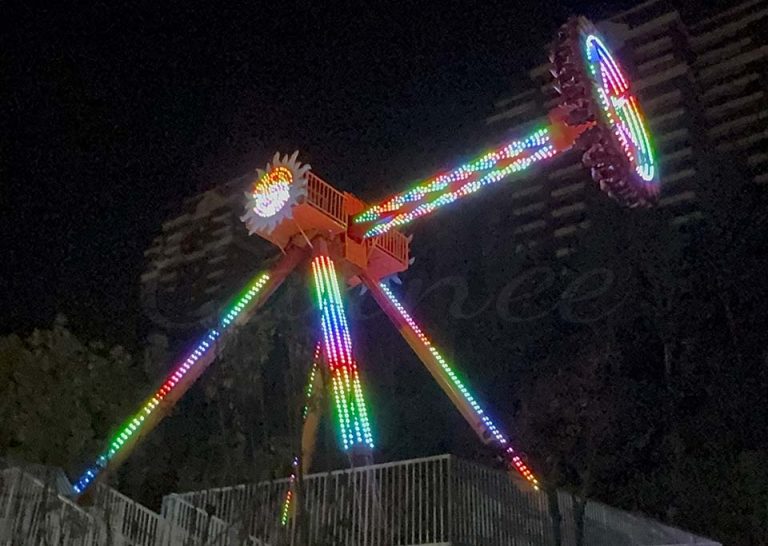

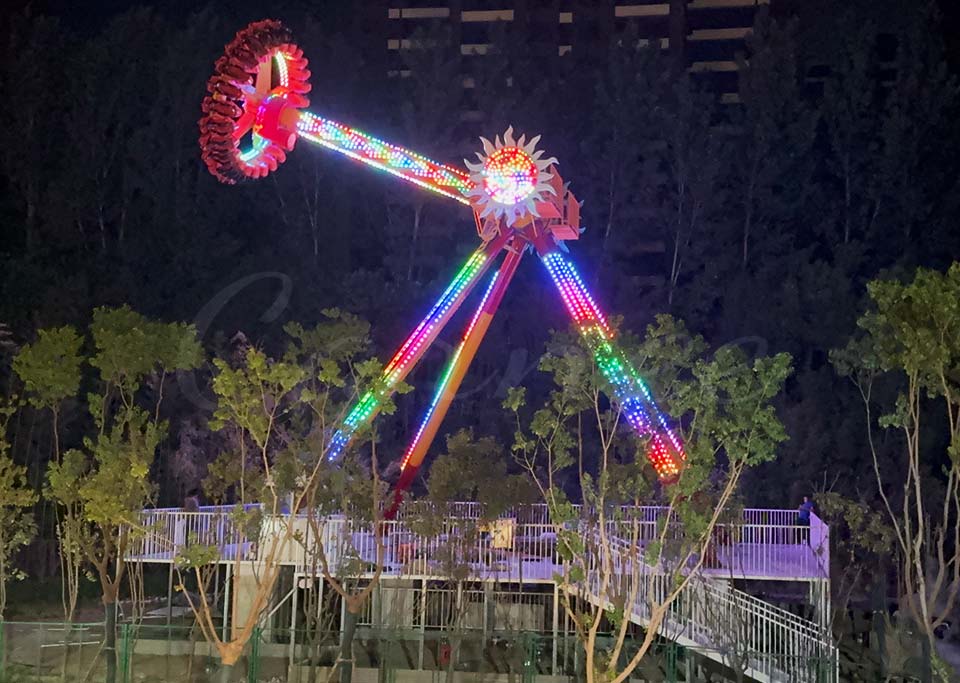

At night, RGB lighting transforms the ride into a dazzling beacon, making it one of the park’s most photographed attractions.
If you’re looking for an even wilder option, we also offer the 25-seat 360° giant pendulum.
25 Seats Giant Pendulum Ride Features
- 100° Wide Swing – Strikes the perfect balance between thrill and comfort, suitable for teens and adults.
- 360° Rotating Gondola – Adds extra excitement with spinning action during the swing.
- Full-Color RGB LED Lighting – Creates a stunning nighttime visual impact to draw crowds.
- High Capacity & Fast Turnover – Accommodates 25 riders per cycle, maximizing operational efficiency.
- Safe & Durable Construction – FRP fiberglass seats + Q235 steel structure with PLC control and soft start/stop.
- Automatic Fault Detection & Maintenance Alerts – Real-time monitoring with early warnings to prevent downtime.
- One-Touch Operation System – User-friendly interface with automatic safety checks; cloud connectivity for remote control and centralized management.
- Customizable Design – Colors, lighting effects, and exterior styling tailored to your park’s theme.

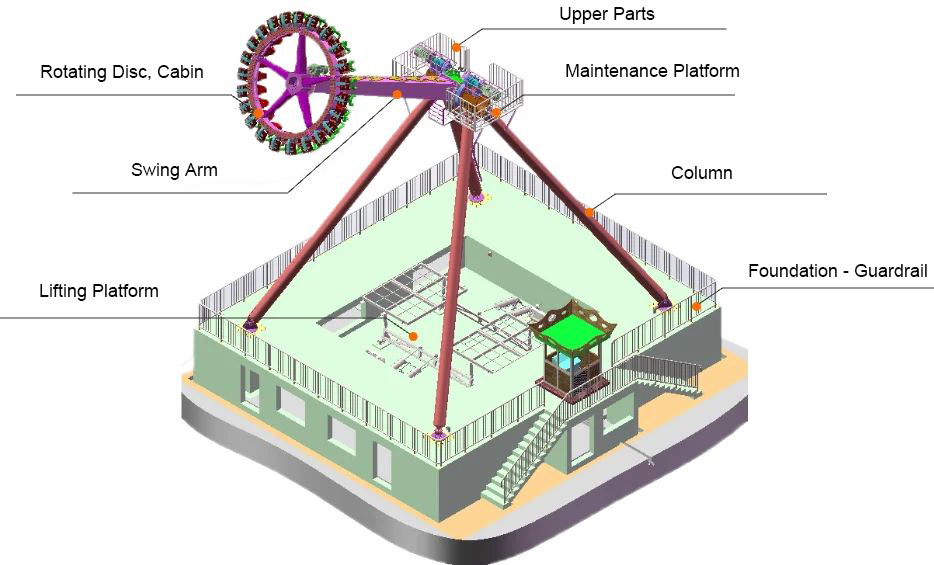

The Structure of the 25 Seats Pendulum Swing Ride
This ride mainly consists of foundation bases, columns, small fixed cylinder components, turntables and seat components, small booms, counterweights, lifting platform components, maintenance platforms, transmission systems, and electrical control systems.
25 Seats Big Pendulum Ride Applications
- Theme parks & amusement parks
- Large carnivals and fairs
- Resort and scenic area attractions
- Night markets & seasonal events
Why Choose Our 25-Seat Giant Pendulum Amusement Ride
- 20+ Years of Manufacturing Experience – Specialized in high-thrill amusement rides.
- Exported to 60+ Countries – Proven quality in global markets.
- High Safety Standards – CE/ISO certified with a double safety restraint system.
- Custom Design Service – Tailored colors, lighting, and appearance.
- Full Service Support – Installation guidance, 12-month warranty, lifetime technical assistance.
🎯 Boost your park’s thrill factor!
Contact us now for a factory-direct price and bring the 25-seat giant pendulum ride to your venue.
Make it the hotspot that visitors can’t resist.
See More: Pendulum Rides FAQ: Everything You Need to Know
